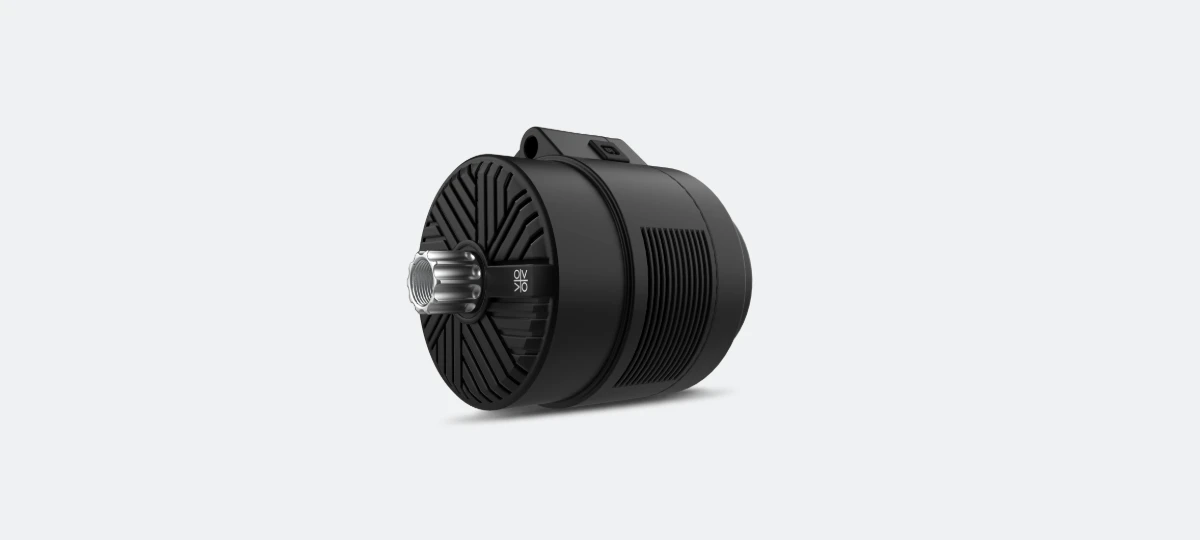

T-25
It uses proprietary and patent technologies. The housing is made of high-strength magnesium alloy with a painted surface finish. The internal speed reduction is achieved through a multi-stage variable planetary gear reduction system, a design that maximizes motor space utilization and features high reduction ratios, high strength, low volume, and low weight. The installation size is 90mm, with an overall weight of just 1.7kg. Its rated power is 250W, with a maximum output torque of 85Nm and an efficiency exceeding 80%.
Specifications
| Size (mm) | 147*105.5*106 |
| Rated power (W) | 250 |
| Voltage (V) | 36 |
| Waterproof | IPX6 |
| Maximum torque (Nm) | 75 |
| Weight (kg) | 1.75 |
| Q-factor（mm） | 147 |
| Transmission Type | planetary gear reduction structure |
| Central Shaft | steel central shaft |
Features
01 Planetary Gear System A planetary gear reduction system, featuring a multi-stage variable planetary gear reduction system. | 02 Efficient Space Utilization The motor hanger is smaller and more streamlined, offering better space utilization. | 03 Lightweight Motor Compared to traditional motors, it is lighter, reducing the weight by approximately 700g. |
