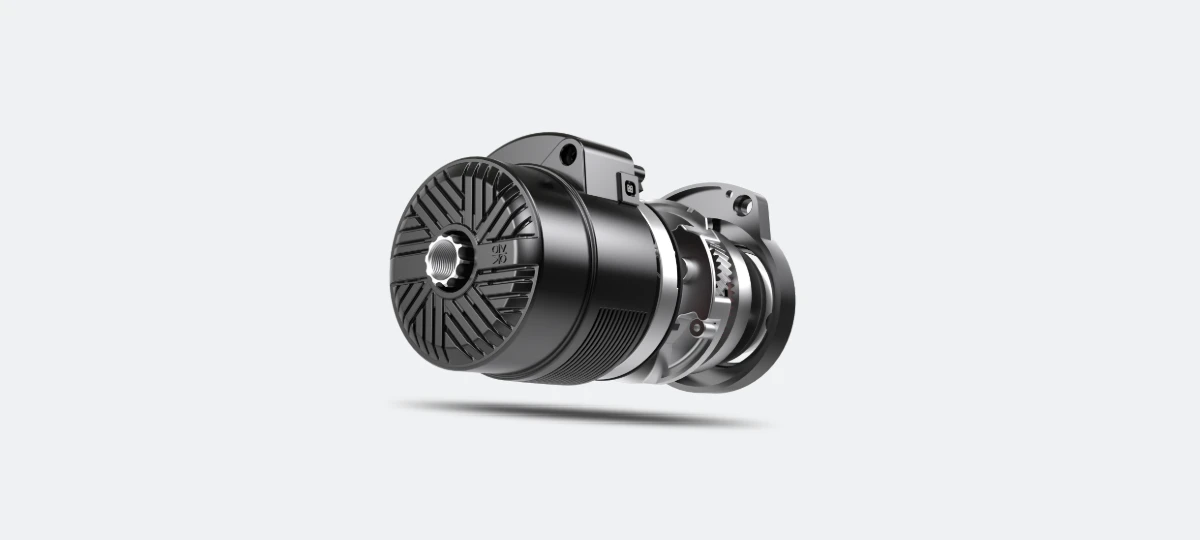

T-25s
It adopts proprietary and patented technologies. The housing is made of high-strength magnesium alloy with a painted surface finish. The internal speed reduction is achieved through a multi-stage variable planetary gear reduction system, maximizing the utilization of motor space. It also uses a titanium shaft, with a weight as low as 1.65kg, offering high reduction ratios, high strength, low volume, and remarkable lightweight properties. The installation size is 90mm, with a rated power of 250W, a maximum output torque of 85Nm, and an efficiency exceeding 80%.
Specifications
| Size (mm) | 147*105.5*106 |
| Rated power (W) | 250 |
| Voltage (V) | 36 |
| Waterproof | IPX6 |
| Maximum torque (Nm) | 75 |
| Weight (kg) | 1.65 |
| Q-factor（mm） | 147 |
| Transmission Type | planetary gear reduction structure |
| Central Shaft | titanium central shaft |
Features
01 Extreme Lightweight The central shaft uses titanium, with the lightweight version reaching 1.65kg. | 02 Planetary Gear System A planetary gear reduction system, featuring a multi-stage variable planetary gear reduction system. | 03 Efficient Space Utilization The motor hanger is smaller and more streamlined, offering superior space utilization. |
